Relux 2200 – 3200

This machine has been studied to solve definitively all the problems connected to the most complicated operation existing in the methacrylate processing, that is the edge polishing of plates and blocks. Relux has been designed to avoid, in a quite reduced technical time granting an excellent polishing and edges sharp enough to allow a perfect head glueing and absolutely planimetric surfaces which need only to be lightly brightened. Relux design and construction are above all turned to the idea of its working-life in time, its mechanical unexcionability, its assurance, its great flexibility and easy control. We reach all that taking meticulously care of the machine making and preparation, besides the use for electronical, electrical and mechanical componente widly tested by the best Firm.

TECHNICAL DATA

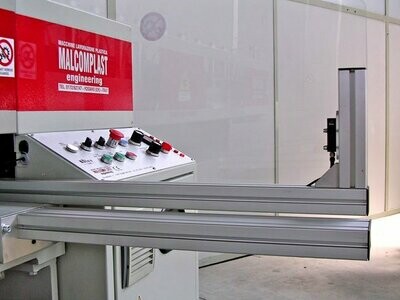

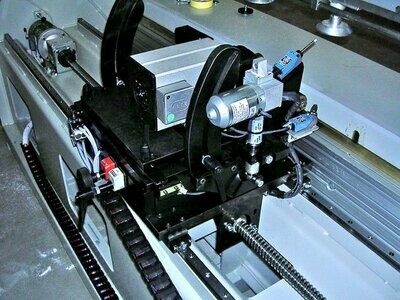

Two solid side panels, opportunely jointed together by high-tensile steel longerons, form the frame of Relux which is quite well fitted to support every kind of stress without injuring the external appearance which has a nice design. Ground steel workingbench with supplementary steel tables also allowing the working of sizabie plates. lt is possible to work pieces with a lenght exceeding max workable thanks to the gooseneck passage placed on the left of the operator, The carriage, opportunely and carefully dimensioned, is driven by a high precision ball screw with a variable continuous feed speed from 0,10 to 2 m./ min. and a return speed until 7 m./min.

Pressori bloccaggio pezzi 8 – 12 (mod 3200)
